2 to 5 Pin Auto-Locking Waterproof Male Femal 6.0-11.5mm M25 Connector
Introduction:
1)Auto-Locking Waterproof connector.
2)IP68 2-5 pins Waterproof connector.
3)Mini waterproof circular connector.

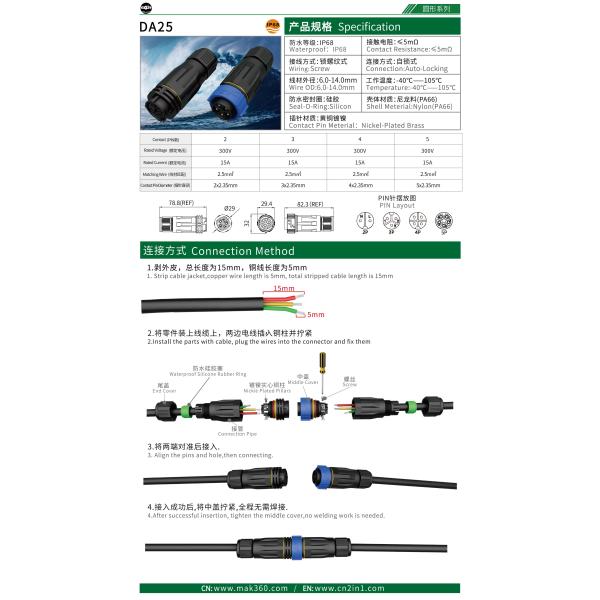

Specification
| Number of Contacts | 2 Pin | 3 Pin | 4 Pin | 5 Pin |
| Rated Voltage | 300V | 300V | 300V | 300V |
| Rated Current | 15A | 15A | 15A | 15A |
| Withstanding Voltage | 1200V |
| Protection Level | IP68 |
| Contact Pin Diameter | 2.35mm | 2.35mm | 2.35mm | 2.35mm |
| Max Cable OD | 14.0mm |
| Opeterating temperature | -40℃~105℃ |
| Shell Material | Plastic (Nylon PA66) |
| Contact Pin Material | Brass |
| Finish | Gold |
| Contact Resistance | ≤5mΩ |
| Connection | Auto-Locking connection |
| Certificate | IP68 |
| Application | LED Lighting, Equipments, Mining Lighting etc. |
Prodection details
Feature:
1) Quick lock assembly, simple to use and convenient installation;
2) Integrating current and signal transmission in one of the multifunctional intergrated circular connector;
3) Nylon fiber material greatly improves product durability and safety;
4) Nickle plated brass pins ensure conducting performance stability and security.
FAQ:
Q: Can I get some samples for testing before further orders?
A: Certainly, we are happy to offer you samples as per your request. As the old saying goes: To see is to believe, we believe you will be satisfied with our products.
Q: Do you have certification for your connectors?
A: Yes, most of our connectors have CE/ROHS/IP67/IP68 certificates while some of them have TUV/UL certificates.
Q: Why choose us?
A: We are a factory focus on waterproof connectors for over 12 years, we have:
1. 100% home made, competitive price and short lead time.
2. Strict quality control: we have IS09001, our connectors have CE/CQC/ROHS/IP67/IP68/TUV/UL certificates.
